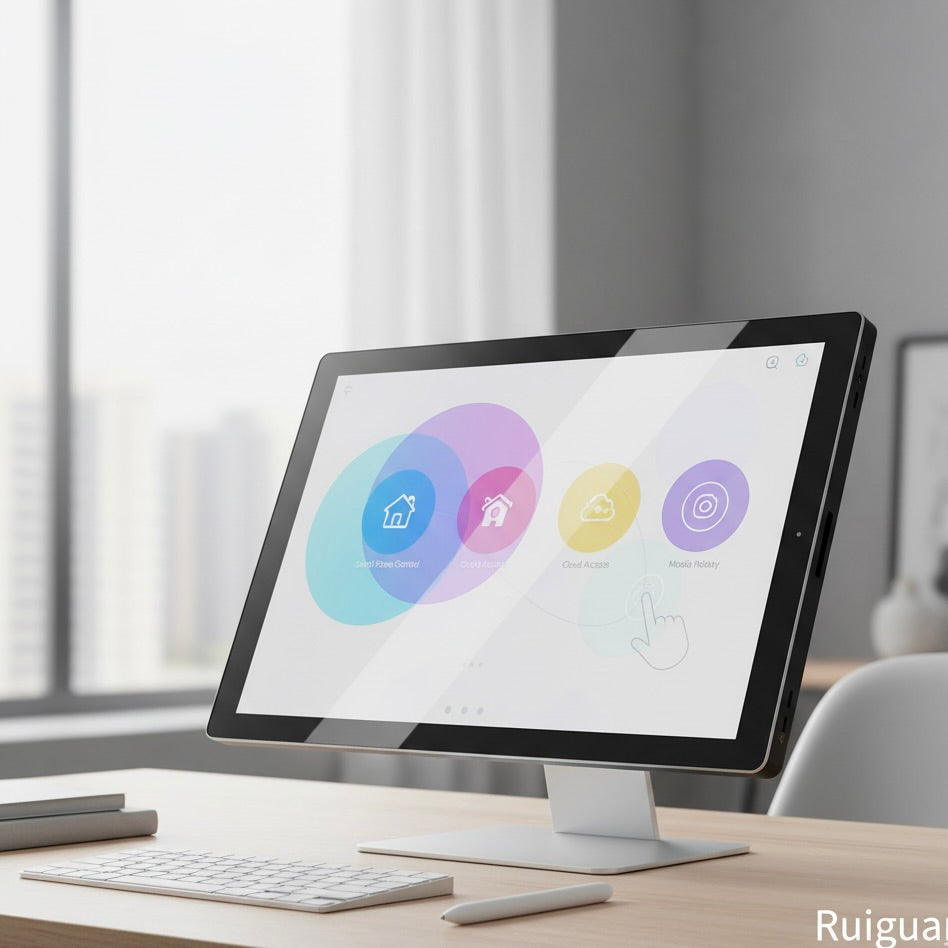

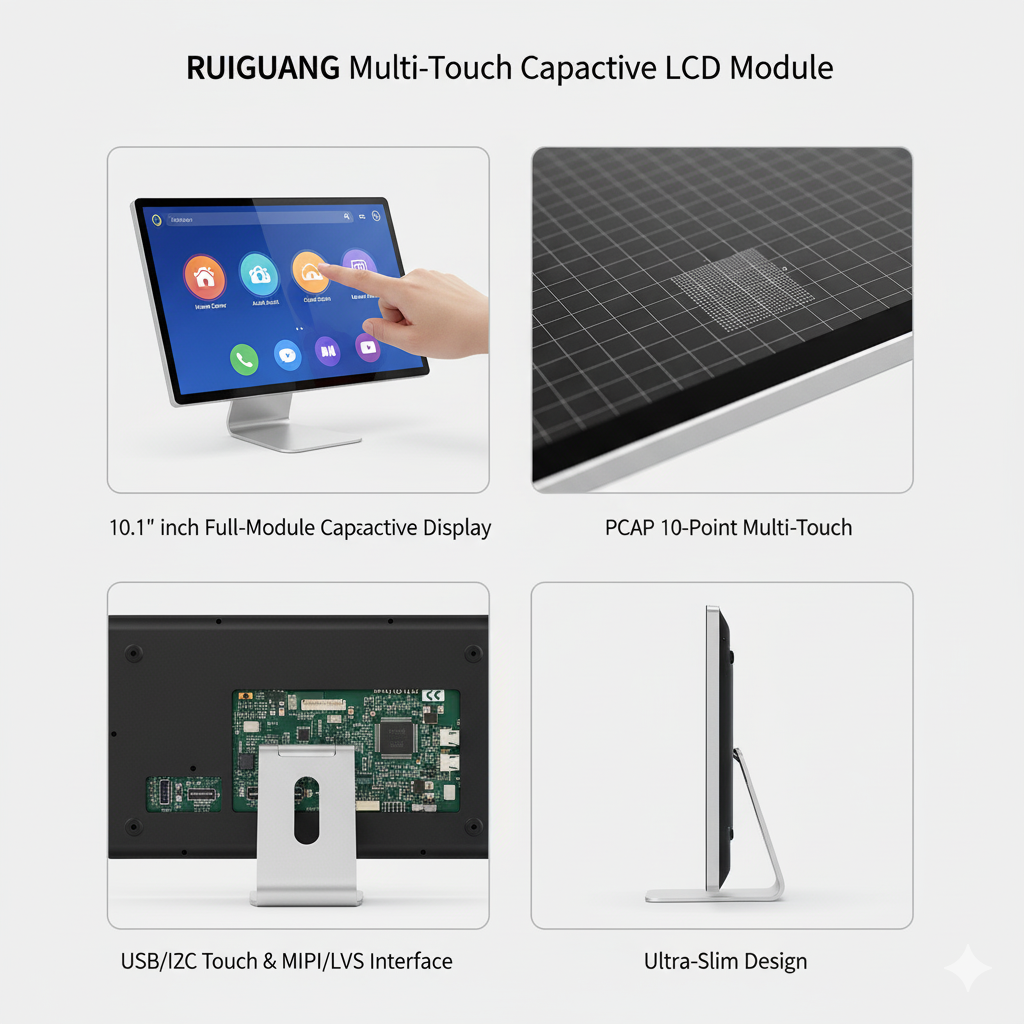

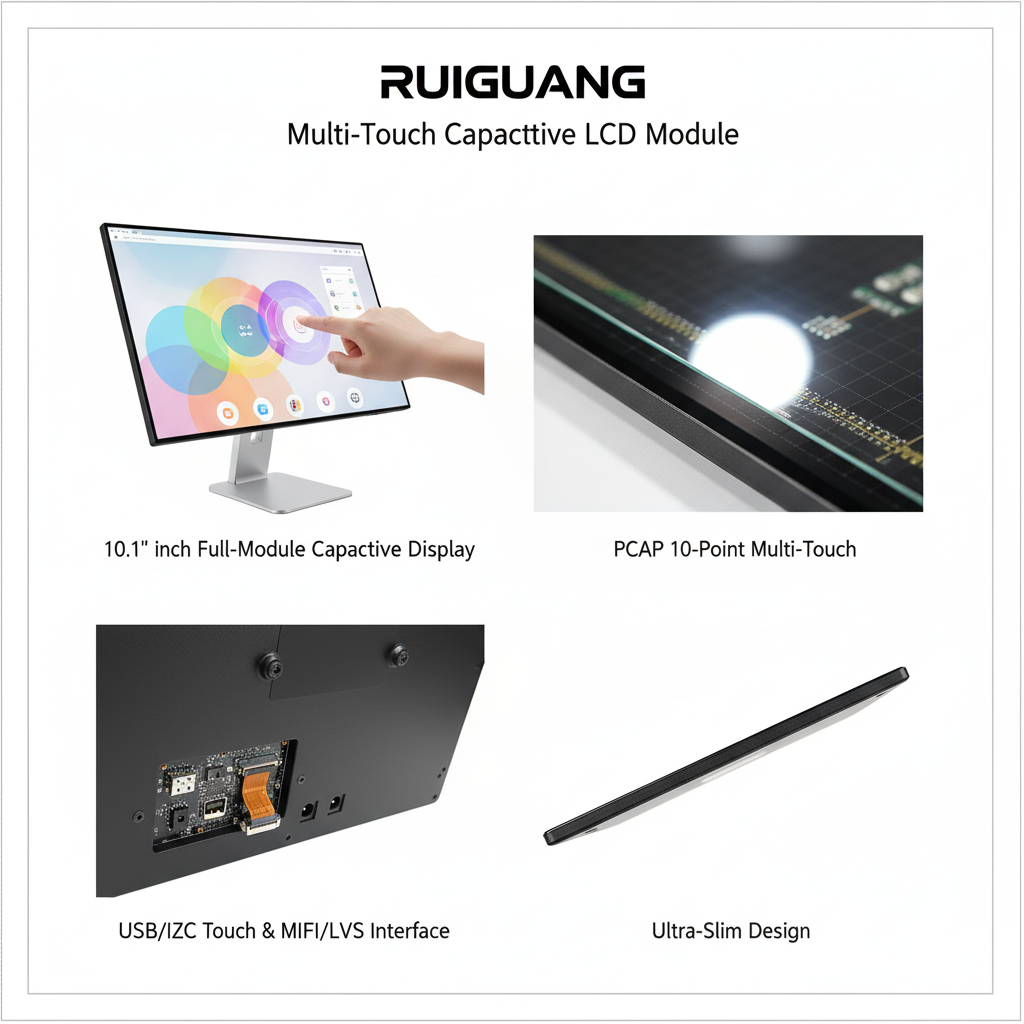

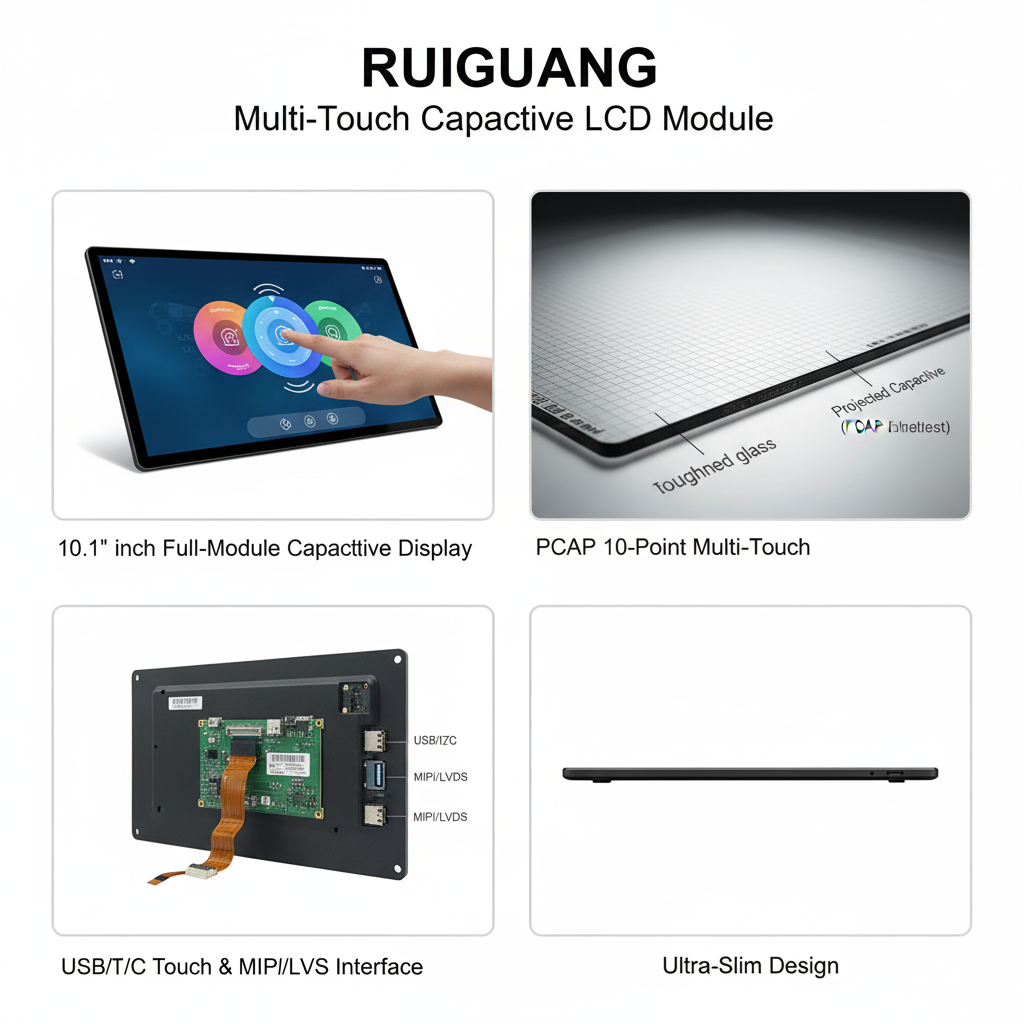

The Ruiguang RG-101CTP-IPS elevates interactive design with a vibrant 10.1-inch IPS display. It offers rich color fidelity and wide viewing angles, making it suitable for high-end consumer and commercial interfaces. The module integrates a highly responsive 10-point PCAP touch screen, protected by chemically strengthened glass (hardness ≥6H). This slim, full-module design, often utilizing advanced Optical Bonding, is the perfect component for interactive kiosks, smart home panels, and modern POS systems requiring precise and durable touch control.
Model: RG-101CTP-IPS
|
Specification |
Details |
|
Display Size |
10.1 Inches (Diagonal) |
|
Resolution |
1280 x 800 (WXGA) or 1920 x 1200 (WUXGA) |
|
Technology |
IPS (In-Plane Switching) for Superior Color |
|
Brightness |
400 nits (Typical) |
|
Touch Type |
Projected Capacitive (PCAP), 10-Point Multi-Touch |
|
Cover Glass |
Chemically Toughened Glass, Hardness ≥6H |
|
Bonding Method |
Optical Bonding or Air Bonding (Option) |
|
Interface |
MIPI DSI / LVDS (Display), USB / I²C (Touch) |
|
Module Depth |
Ultra-Slim Profile, Integrated Controller |
|
Life Span (Backlight) |
≥50,000 Hours |
